Fiber Arrays

       Home
Up



The Fiber Array is one of the key devices in next generation optical communication networks, enabling higher DWDM channel counts than ever before. AMCG offers Fiber Array and V-Grooves which meet the high quality and uniformity requirements, with quick turnaround. Flexibility of configuration includes fiber type, pitch, substrate dimensions, and substrate materials.

Applications

Features

         Arrayed Waveguide Gratings (AWGs)

         Variable Optical Attenuators

         Waveguides

         MEMS

         Optical Switches

         Splitters/combiners

         Excellent fiber core position accuracy

         Telcordia GR-1221-CORE compliant

         Glass V-groove substrate & lid for effective UV curing

         Custom design f lexibility

         Hermetically sealed package with metalized fiber

         Termination to LC, MU, SC, FC, ST, MPO available

Specifications

Number of fiber cores

1 ~ 96

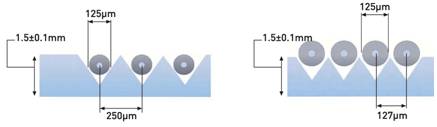

Fiber Core Pitch

127m or 250m (Standard)

Core Pitch Tolerance

0.7m or 0.5m

End Face Polish

82, 90, 98 0.2 degrees (standard)

Polish Flatness

4 fringes at 623.8nm

V-Groove Lid Materials

Pyrex, Quartz, Silicon, etc.

Fiber Type

SM, MM (50 or 62.5 m), special type

Fiber or Ribbon Length

2m or custom



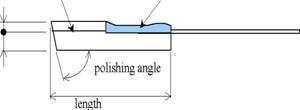

Dimensions

Ch

Fiber

Spacing

Width

Length

1

250um

900um

2.5mm

2.5

8mm

8

4

4f ribbon

250um

3.5

10

8

8f ribbon

127um

250um

2.5

5

12

12

16

2x8f ribbon

127um 250um

3.2

7

12

12

32

4x8f ribbon

127um 250um

5.6

11.5

12

12

40

5x8f ribbon

250um

12.0

12

48

6x8f ribbon or 4x12f ribbon

127um 250um

8

16

12

12

 Note: Fiber arrays sizes, fiber lengths, and connectors are customizable. Specifications are subject to change without notice. Please contact us for your request.
