PLC Splitters

       Home
Up

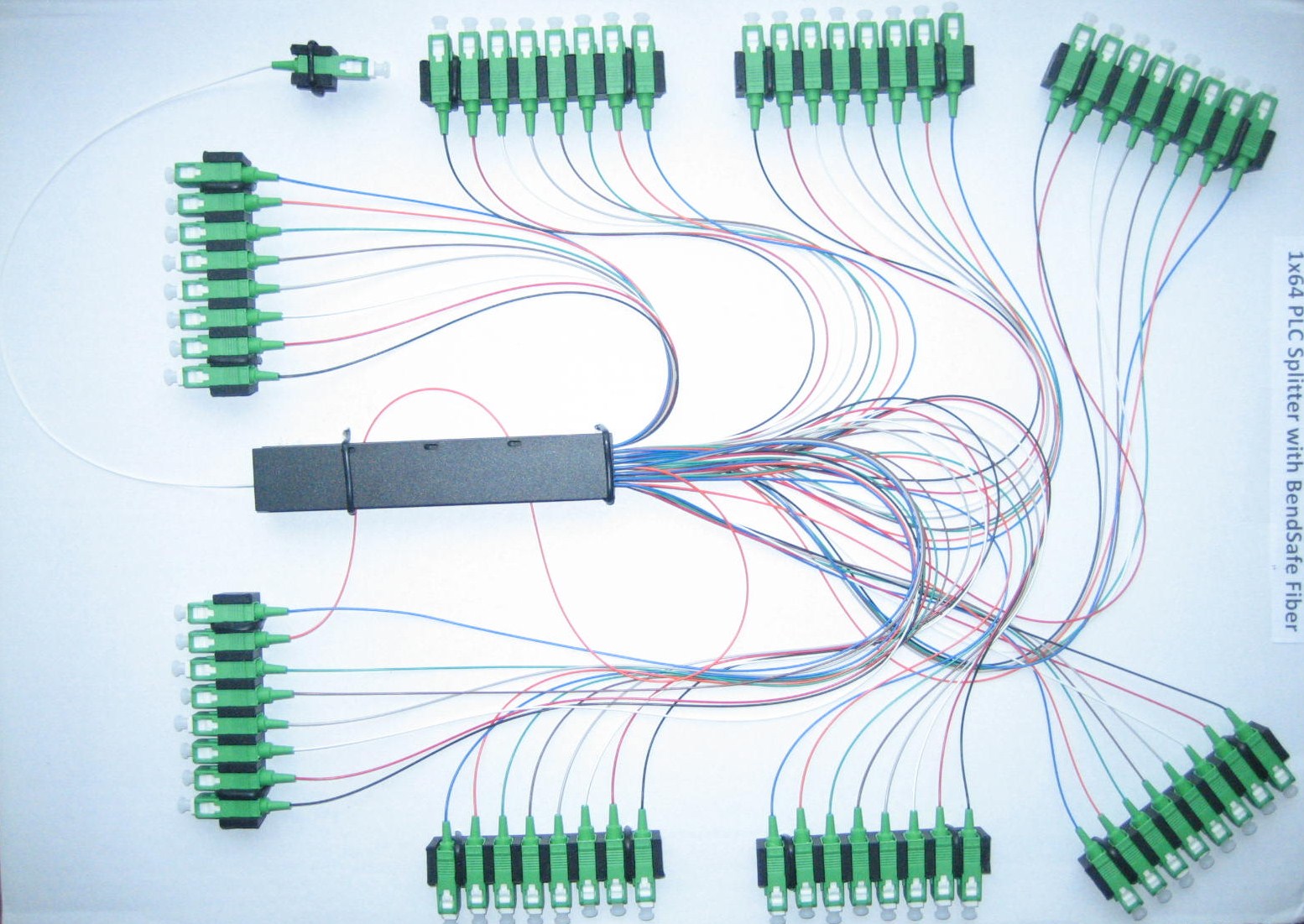

AMCG has successfully developed a complete line of PLC based splitters for FTTX applications. Our splitters integrate in-house high quality fiber v-groove arrays and BendSafe fiber cable to provide high performance signal splitting with compact and robust installation option for FTTX systems. We further integrate splitters into compact modules and 1-U subsystems for easy configuration into a flexible network.



   Customization and Accessories

   AMCG offer customized solutions in the following aspects:

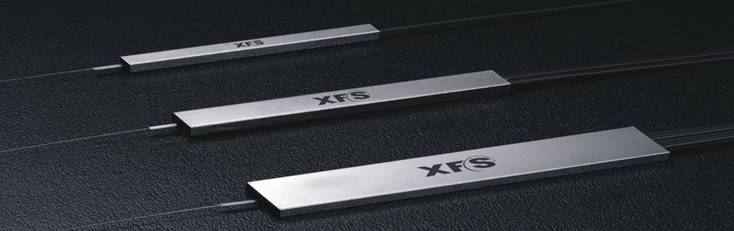

  •  Splitter components:  Splitters in thin shells with ribbons for your customer to make into modules.

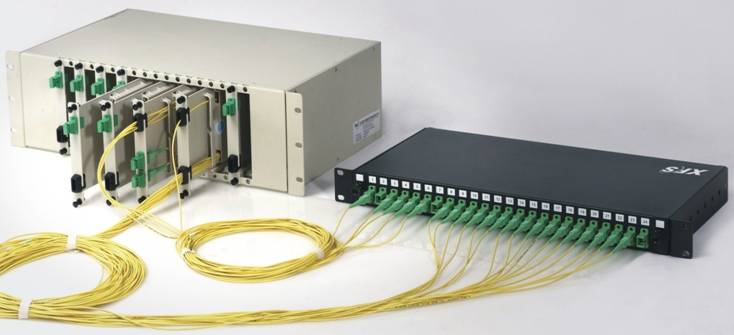

  • Module format:  Splitter integrated into LGX or standard 1U chassis ready for installation

  •  Fiber type:  BendSafe fiber (ITU-T.G.657 class A or B), SM, MM 50/62.5um fiber, specialty fiber.

  • Cord jacket types: bare ribbon, jacketed ribbon cord, 900um, 1.4mm, 1.6mm, 2mm & 3mm cord.

  • Connector type: Terminated to SC/UPC, SC/APC, FC/UPC, FC/APC, LC, MU, MPO/MTP, E2000.

  • Performance options: Insertion loss, return loss, PDL, can be turned for better performance.

  • Cord Material options: PVC, Hytrel, LSZH, PVDF
